How to Create a Thread and Execute It on Specific CPU Core

What is a Thread?

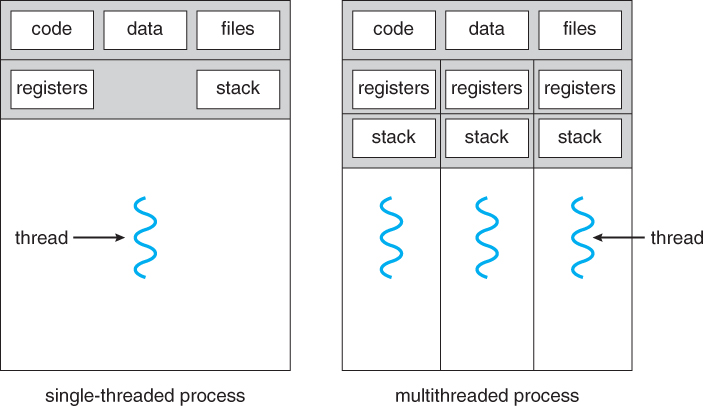

A thread is an independent path of execution within a process. A process can contain multiple threads, all sharing the same address space, file descriptors, and heap — but each with its own stack and register state.

Examples: a browser runs one thread per tab; a text editor runs one thread for rendering and another for handling keystrokes. On Linux, threads and processes are both represented as tasks — the kernel makes no fundamental distinction between them.

Linux does not distinguish between processes and threads — it uses the generic term task. clone() with CLONE_THREAD is what pthread_create calls under the hood.

Thread Lifecycle — Joinable vs Detached

Every POSIX thread is created in one of two modes:

#include <pthread.h>
#include <stdio.h>

void *worker(void *arg) {
    int id = *(int *)arg;
    printf("Thread %d running\n", id);
    return NULL;
}

int main(void) {
    pthread_t tid;
    int id = 42;

    /* Create joinable thread (default) */
    if (pthread_create(&tid, NULL, worker, &id) != 0) {
        perror("pthread_create");
        return 1;
    }

    /* Block until thread exits — also frees its resources */
    pthread_join(tid, NULL);
    return 0;
}

Compile with: gcc thread.c -o thread -lpthread

pthread_create — Full Signature

int pthread_create(
    pthread_t        *thread,      /* OUT: handle to new thread        */
    const pthread_attr_t *attr,    /* thread attributes (NULL = default)*/
    void *(*start_routine)(void*), /* function to run                  */
    void             *arg          /* argument passed to function       */
);
/* Returns 0 on success, errno value on failure */

Pass NULL as attr to accept all defaults: scheduling policy SCHED_OTHER, priority 0, all CPU cores allowed, joinable mode.

Setting Thread Attributes

To control scheduling policy, priority, and CPU affinity you need a pthread_attr_t. Always initialise and destroy it:

pthread_attr_t attr;
pthread_attr_init(&attr);          /* initialise with defaults */

/* ... set fields ... */

pthread_create(&tid, &attr, fn, arg);
pthread_attr_destroy(&attr);       /* free internal resources  */

Scheduling Policy

Linux provides three scheduling policies relevant to real-time and embedded work:

/* Set SCHED_FIFO on the attribute */
pthread_attr_setschedpolicy(&attr, SCHED_FIFO);

/* Must also set this flag — otherwise the attr policy is ignored */
pthread_attr_setinheritsched(&attr, PTHREAD_EXPLICIT_SCHED);

The PTHREAD_EXPLICIT_SCHED flag is critical — without it, the thread inherits the creating thread's policy regardless of what you set in the attribute.

Thread Priority

Real-time threads use priority 1 (lowest RT) to 99 (highest RT). A higher-priority RT thread preempts any lower-priority thread immediately.

struct sched_param param;

/* Query the maximum allowed priority for this policy */
param.sched_priority = sched_get_priority_max(SCHED_FIFO);

pthread_attr_setschedparam(&attr, &param);

CPU Affinity — Pinning to a Core

cpu_set_t is a bitmask — one bit per logical CPU. You manipulate it with four macros:

cpu_set_t cpuset;

CPU_ZERO(&cpuset);           /* clear all bits            */
CPU_SET(2, &cpuset);         /* allow core 2              */
CPU_CLR(2, &cpuset);         /* remove core 2             */
CPU_ISSET(2, &cpuset);       /* check if core 2 is set    */

Apply the mask to the attribute before creating the thread:

pthread_attr_setaffinity_np(&attr, sizeof(cpu_set_t), &cpuset);

To verify after creation — read back the actual affinity the thread is running with:

cpu_set_t actual;
pthread_getaffinity_np(tid, sizeof(cpu_set_t), &actual);

for (int c = 0; c < CPU_SETSIZE; c++) {
    if (CPU_ISSET(c, &actual))
        printf("Thread running on core %d\n", c);
}

Why Pin a Thread to a Core?

Three reasons this matters in embedded and real-time systems:

1. Cache locality — a thread pinned to one core keeps its working set in that core's L1/L2 cache. Migrating between cores causes cold cache misses, increasing latency unpredictably.

2. Interrupt affinity — on multi-core SoCs, IRQs are often distributed across cores. Pin your RT processing thread to the same core that handles the hardware interrupt to eliminate cross-core wakeup latency.

3. Determinism — in hard RT systems, you need to reason about worst-case execution time (WCET). An unbound thread can be migrated at any scheduler tick, making WCET analysis impossible. A pinned thread on a dedicated core eliminates that variable.

Complete Working Example

Creates a SCHED_FIFO RT thread pinned to core 1, verifies its affinity, then joins it:

#define _GNU_SOURCE
#include <pthread.h>
#include <sched.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <errno.h>

void *rt_worker(void *arg) {
    /* Confirm which core we're on */
    cpu_set_t actual;
    pthread_getaffinity_np(pthread_self(), sizeof(cpu_set_t), &actual);
    for (int c = 0; c < CPU_SETSIZE; c++) {
        if (CPU_ISSET(c, &actual))
            printf("[worker] running on core %d\n", c);
    }

    /* Real work goes here */
    printf("[worker] doing real-time work...\n");
    return NULL;
}

int main(void) {
    pthread_t tid;
    pthread_attr_t attr;
    struct sched_param param;
    cpu_set_t cpuset;
    int ret;

    /* 1. Initialise attribute */
    pthread_attr_init(&attr);

    /* 2. Set SCHED_FIFO + explicit scheduling */
    pthread_attr_setschedpolicy(&attr, SCHED_FIFO);
    pthread_attr_setinheritsched(&attr, PTHREAD_EXPLICIT_SCHED);

    /* 3. Set priority to 80 (leave room above for panic handlers) */
    param.sched_priority = 80;
    pthread_attr_setschedparam(&attr, &param);

    /* 4. Pin to core 1 */
    CPU_ZERO(&cpuset);
    CPU_SET(1, &cpuset);
    pthread_attr_setaffinity_np(&attr, sizeof(cpu_set_t), &cpuset);

    /* 5. Create thread */
    ret = pthread_create(&tid, &attr, rt_worker, NULL);
    if (ret != 0) {
        fprintf(stderr, "pthread_create: %s\n", strerror(ret));
        return 1;
    }
    pthread_attr_destroy(&attr);

    /* 6. Join — wait for thread to finish and free its resources */
    pthread_join(tid, NULL);
    printf("[main] thread done\n");
    return 0;
}

/* Build: gcc -O2 rt_thread.c -o rt_thread -lpthread
   Run:   sudo ./rt_thread          (SCHED_FIFO needs root) */

Common Pitfalls

For the full Linux scheduler reference see sched(7) — Linux man pages.
